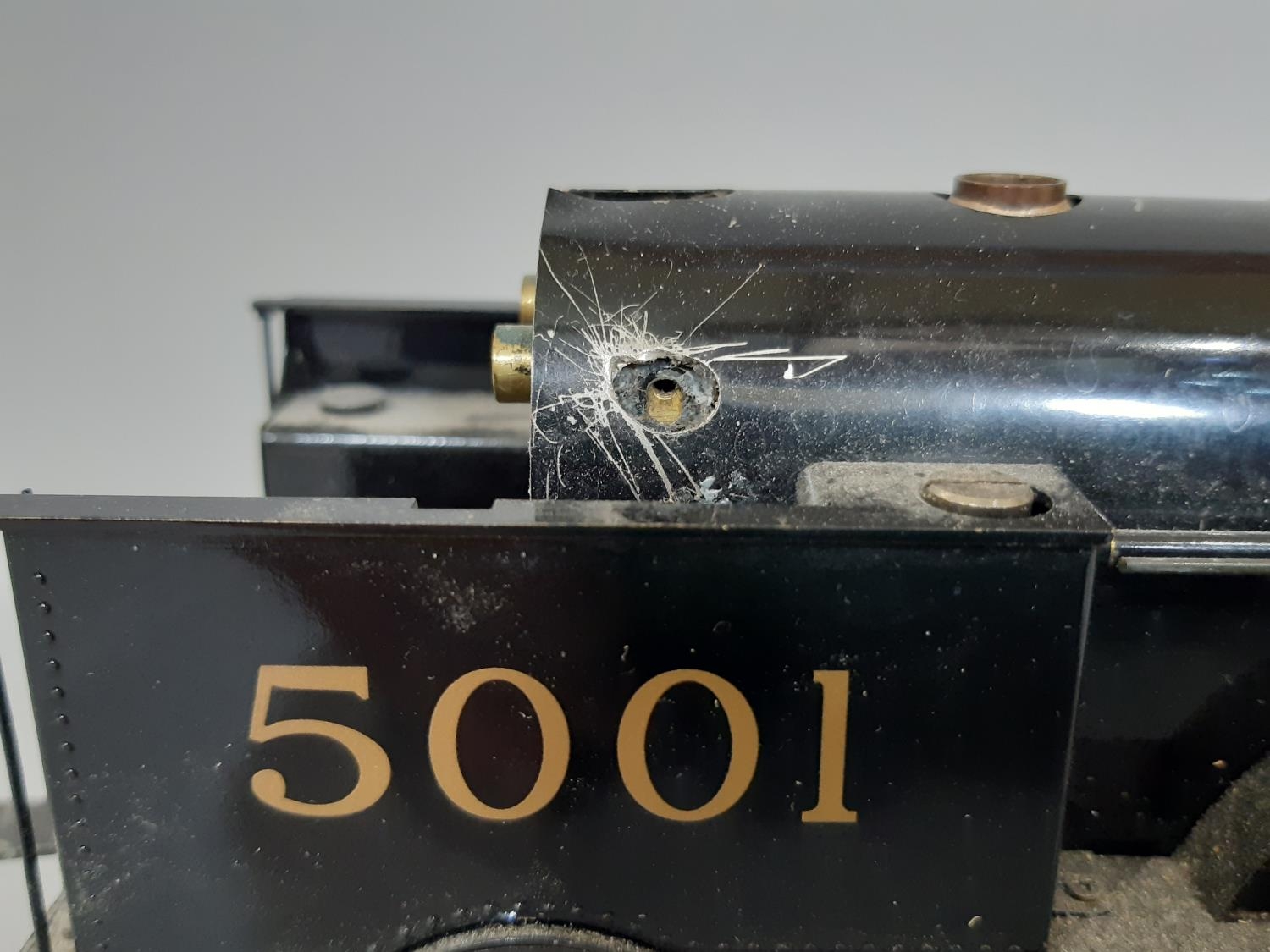

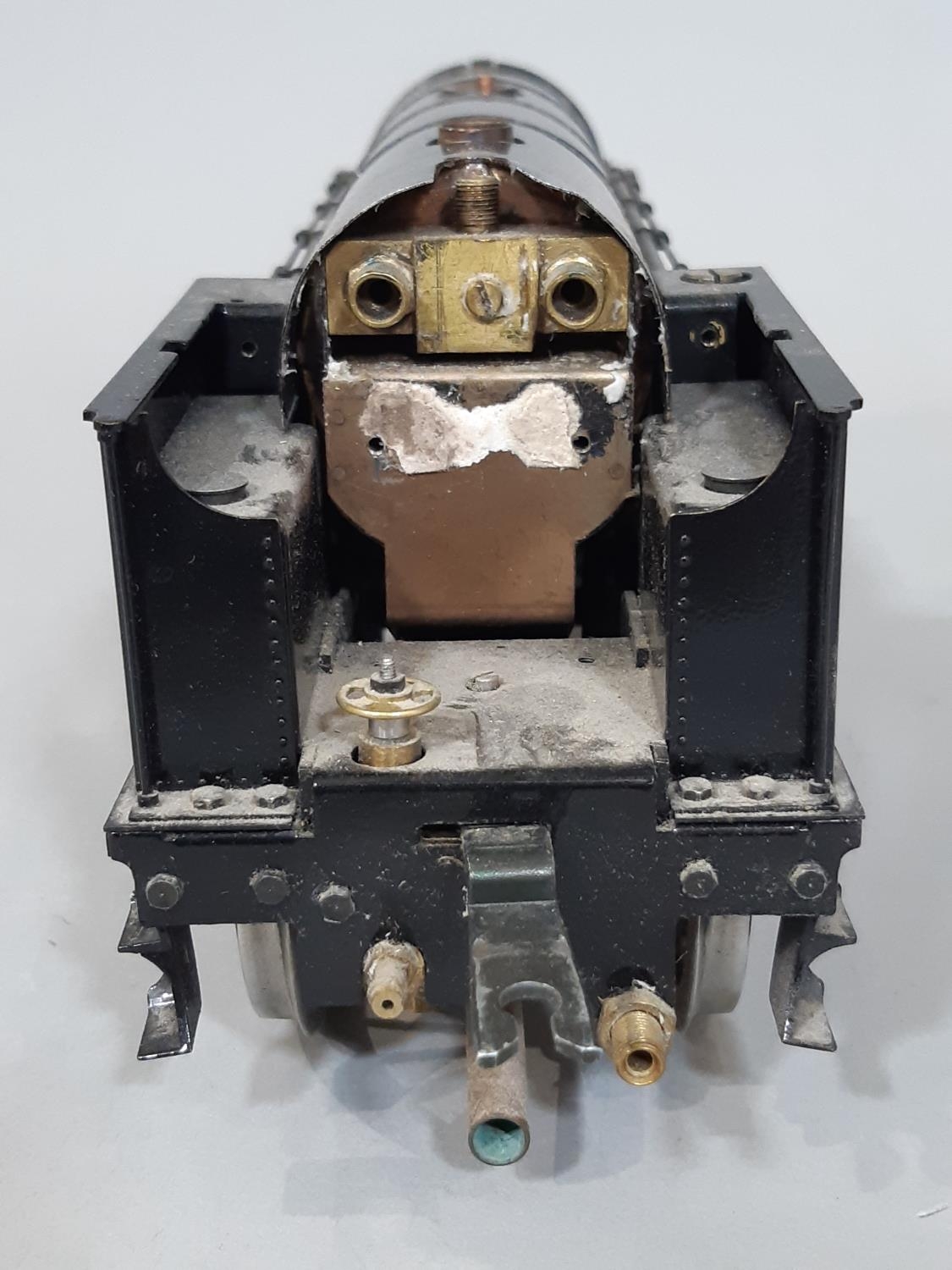

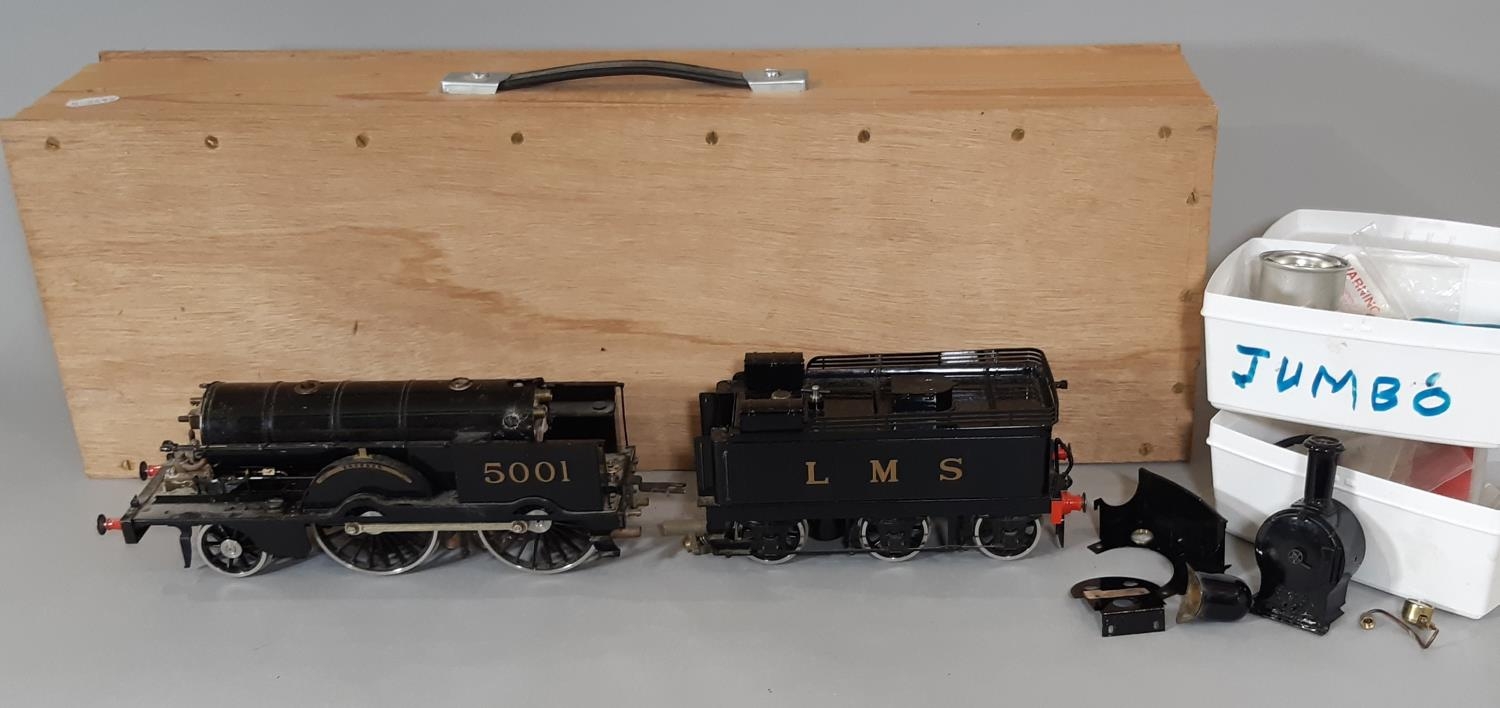

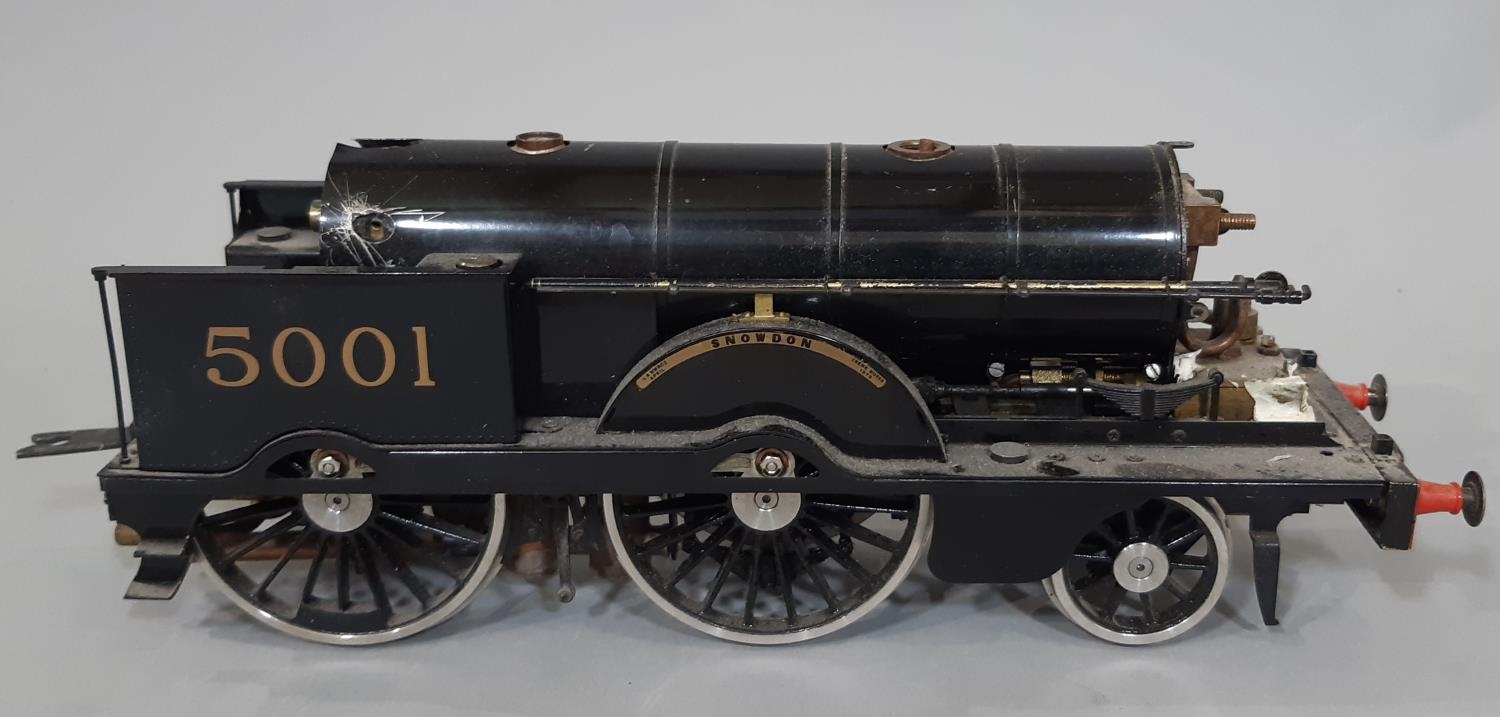

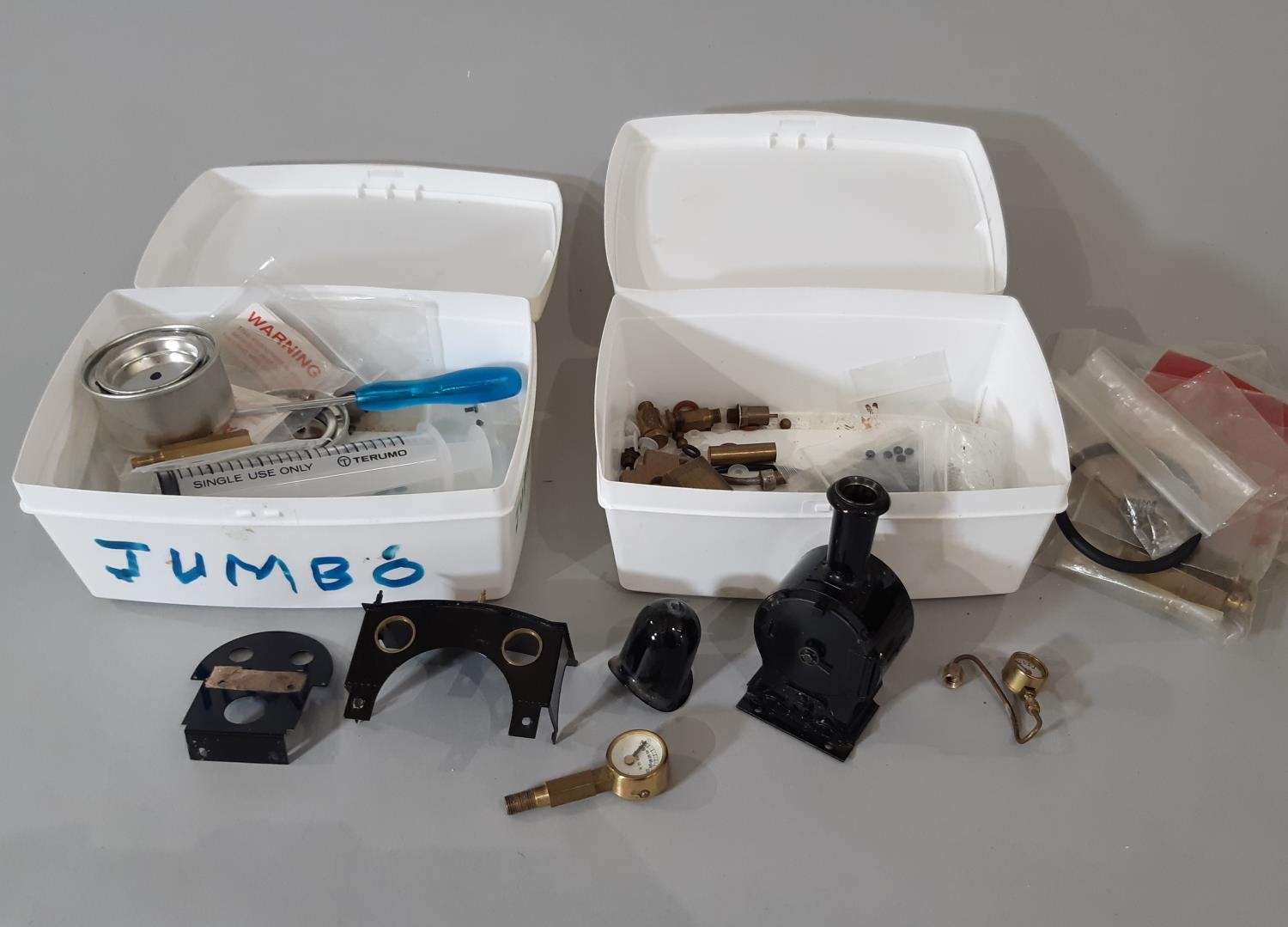

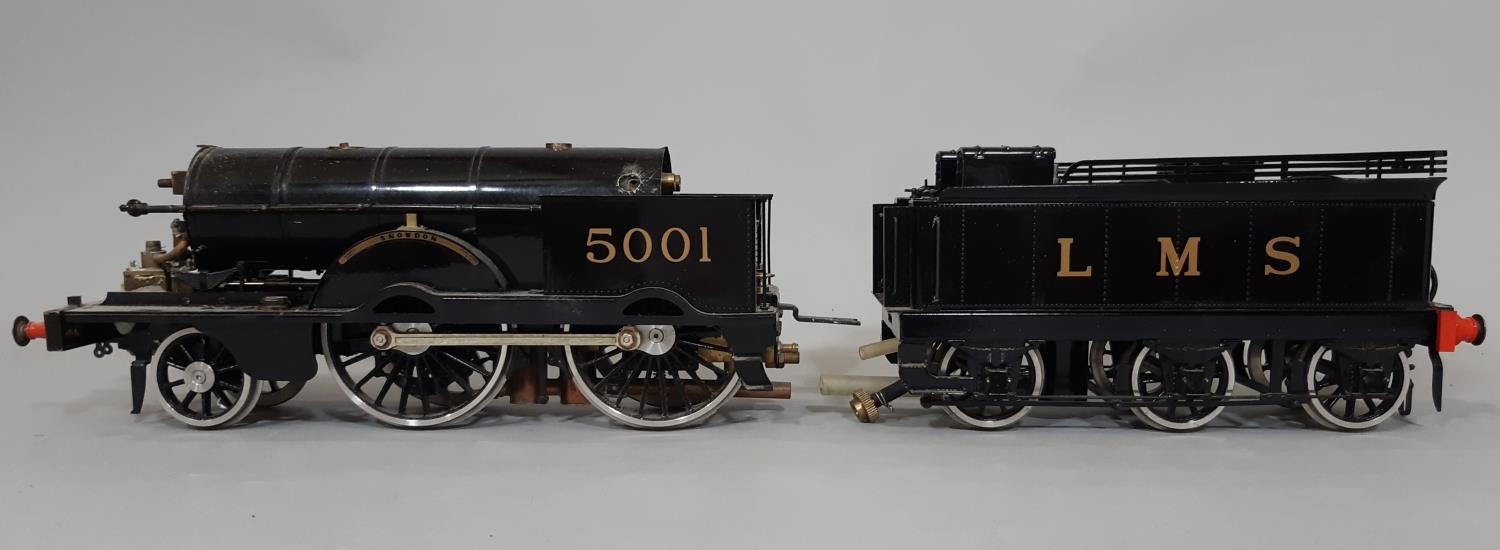

Gauge 1 live steam train by Aster, LMS 2-4-0, Jumbo locomotive and tender, 'Snowdon' 5001, missing cab, smoke box and chimney. Lot includes spare parts and some small precision parts (not checked for completeness). With wooden transport case.

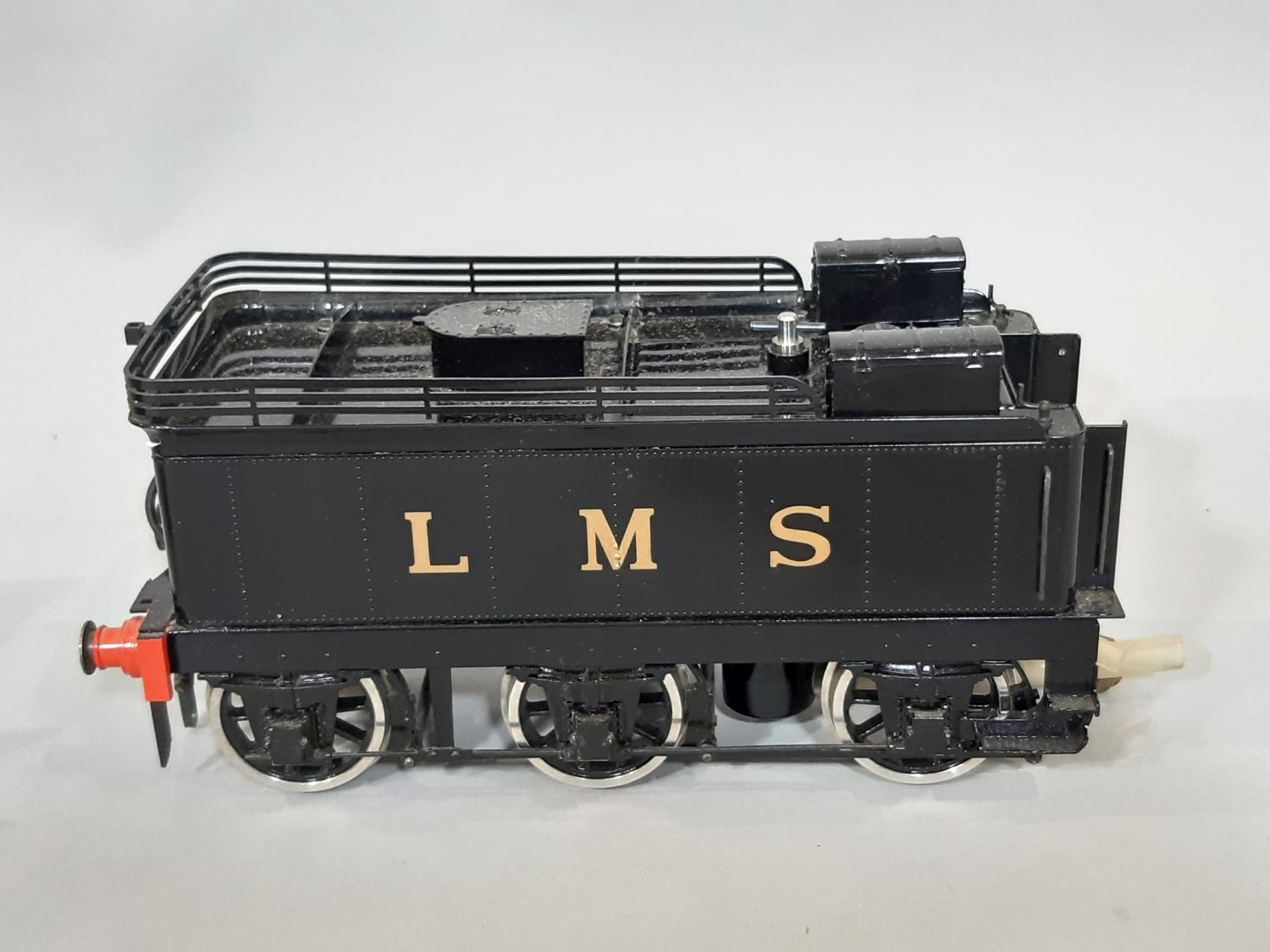

Specifications: No.1 Gauge (45 mm). Dimensions; length of engine 252 mm (10 inches) + tender 195 mm (8 inches) Width: 74 mm (3 inches) Height: 125 mm (5 inches).
Wheel arrangement: 2-4-0 Driving Wheels: 63 mm leading wheels: 34 mm tender wheels: 34 mm Weight: 2.6 kg (5 3/4 lbs) Engine 1.7 kg (3 3/4 lbs) + Tender 0.9 kg (2 lbs).
Axle driven pump: Pump rum 5 mm x stroke 5 mm, Mounted on trailing driver engine: Two cylinders with D-slide valve.
Bore 10 mm x Stroke 20 mm

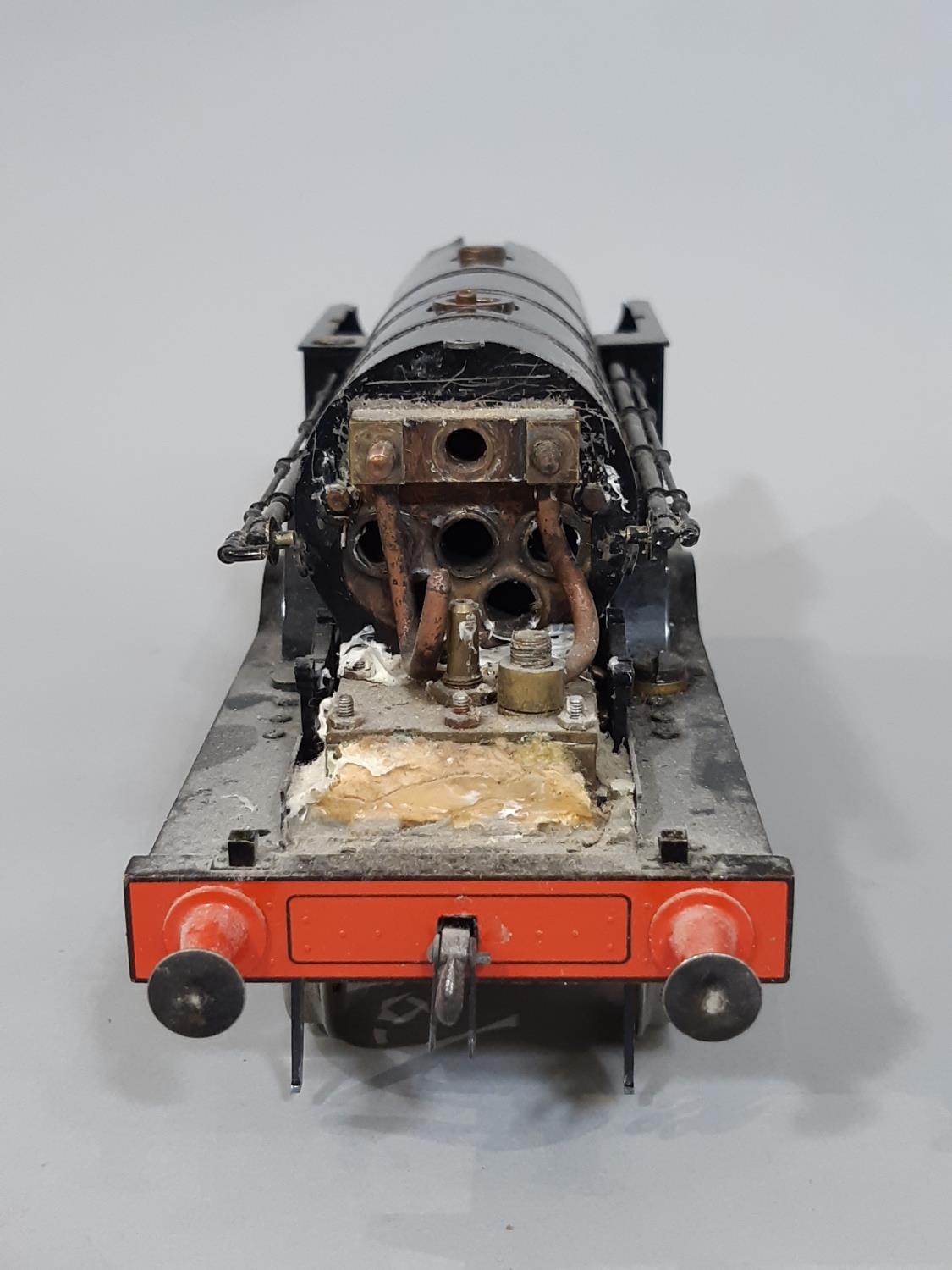

Valve Gears: Slip Eccentric Valve Travel 4 mm, Cut-Off 75% Boiler Type: C-Type with five fire tubes (Dia. 8 mm) Water Capacity: 80 cc at 70% full Working Pressure: 3 - 4 kg/cm Burner / Fuel: methylated spirits.
Boiler disclaimer; boiler is un-checked and no guarantee is given as to its condition or safety.
